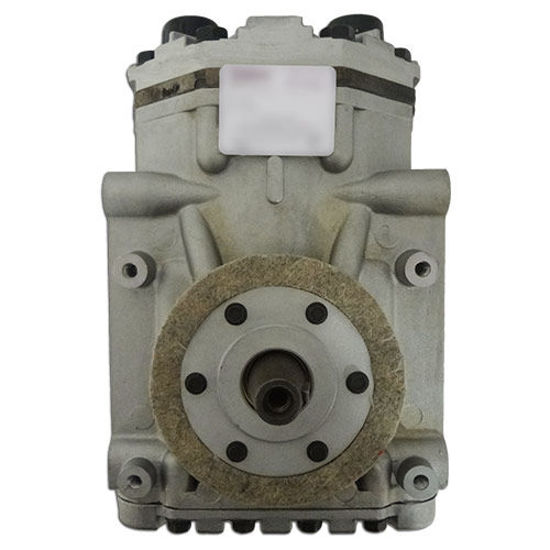

Air Conditioner, Compressor To Fit International/CaseIH® - NEW (Aftermarket)

RH Tube-O Fittings, Without Clutch
Replacement Parts For: International/CaseIH®
Availability: Online Only
View Availability Details
SKU: WN-1255750C91
Product Specifications
Any use of OEM part numbers is for reference only
Cross Reference Numbers 1255750C91, 500-2300
Models 1620, 1640, 1660, 1680, 3088, 3288, 3488, 3688, 3688HC, 5088, 5288, 5488, 6388, 6588, 6788
Additional Information
RH Tube-O Fittings, Without Clutch

1620 S/N -JJC0032629, 1640 S/N -JJC0034704; The following steps must be performed prior to compressor installation for warranty to be considered on all A/C compressors. Failure to do so will void all warranty. 1.The system (condenser, evaporator, lines, etc.) needs to be flushed with an approved liquid? 2.A new receiver-drier or accumulator needs to be put on.3.The expansion valves or office tubes needs to be inspected - cleaned - replaced. 4.Inspect the lines.5.The condenser and evaporator needs to be checked/cleaned of debris. 6.Properly vacuum system down. 7. Use the recommended type and amount of oil needed. 8.Install the proper Freon level. 9. Hand turn the compressor after filing with Freon. 10.Check the voltage to the compressor. 11.Check the system for leaks. 12.The proper documentation/shop work order of the above steps needs to accompany the compressor for warranty.
