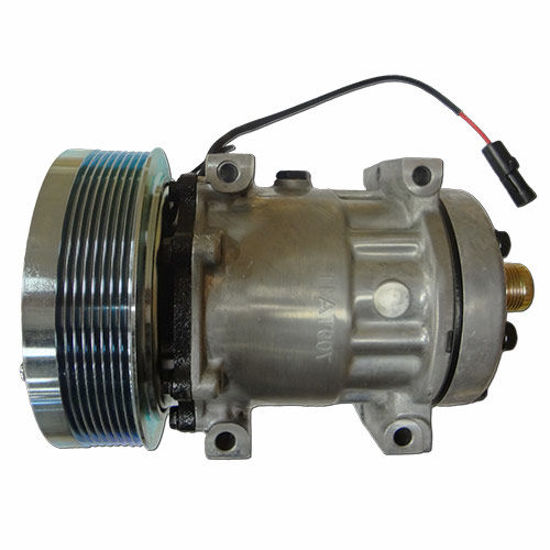

Air Conditioner, Compressor To Fit Miscellaneous® - NEW (Aftermarket)

Side of Engine-Front R134A
Availability: 25 in stock
View Availability Details
SKU: WN-86993463
$275.00
Product Specifications
Any use of OEM part numbers is for reference only
Cross Reference Numbers 86993463, 86992688, 317008A2, 317008A3, 87775469, 4768
Models CI, NH, ST
Models Ford/New Holland: TG210,TG215,TG230,TG245,TG255,TG275,TG285,TG305,TJ375,TJ425,TJ450,TJ480,TJ500,TJ530,T8010,T8020,T8030,T8040,T8050,T8060
Models International/CaseIH: AFX8010,7010,7120,8010,8120,9120,245,255,275,215,245,255,275,305,335,MX210,MX215,MX230,MX245,MX255,MX275,MX285,MX305,8230,9230
Models Steiger: 380 4WD,385,430 4WD,435,480 4WD,485,530 4WD,535
Additional Information
Side of Engine-Front R134A

The following steps must be performed prior to compressor installation for warranty to be considered on all A/C compressors. Failure to do so will void all warranty. 1.The system (condenser, evaporator, lines, etc.) needs to be flushed with an approved liquid? 2.A new receiver-drier or accumulator needs to be put on.3.The expansion valves or office tubes needs to be inspected - cleaned - replaced. 4.Inspect the lines.5.The condenser and evaporator needs to be checked/cleaned of debris. 6.Properly vacuum system down. 7. Use the recommended type and amount of oil needed. 8.Install the proper Freon level. 9. Hand turn the compressor after filing with Freon. 10.Check the voltage to the compressor. 11.Check the system for leaks. 12.The proper documentation/shop work order of the above steps needs to accompany the compressor for warranty.
