Air Conditioner, Compressor, Super Heat To Fit Miscellaneous® - NEW (Aftermarket)

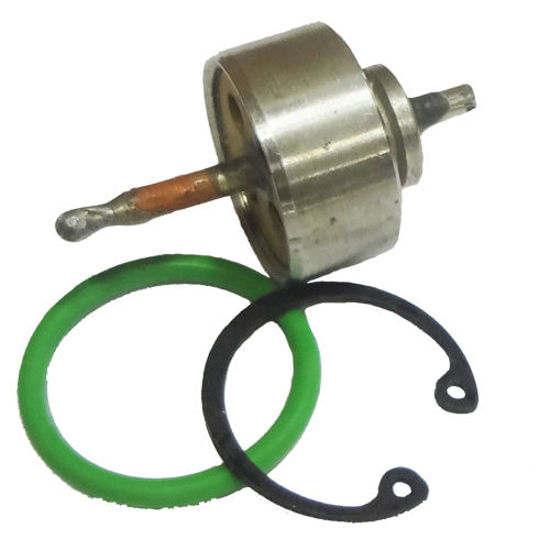

Switch, Snap Ring and Oring, for A6 & S6 Compressors
View Availability Details
Availability: Call for Availability
SKU: WN-220-5000
$73.25
Switch, Snap Ring and Oring, for A6 & S6 Compressors

The following steps must be performed prior to compressor installation for warranty to be considered on all A/C compressors. Failure to do so will void all warranty. 1.The system (condenser, evaporator, lines, etc.) needs to be flushed with an approved liquid? 2.A new receiver-drier or accumulator needs to be put on.3.The expansion valves or office tubes needs to be inspected - cleaned - replaced. 4.Inspect the lines.5.The condenser and evaporator needs to be checked/cleaned of debris. 6.Properly vacuum system down. 7. Use the recommended type and amount of oil needed. 8.Install the proper Freon level. 9. Hand turn the compressor after filing with Freon. 10.Check the voltage to the compressor. 11.Check the system for leaks. 12.The proper documentation/shop work order of the above steps needs to accompany the compressor for warranty.
Product Specifications Any use of OEM part numbers is for reference only
ModelsAC, CI, HS, JD, MF
ModelsAllis Chalmers: 7000,7010,7020,7045,7060,7080
ModelsHesston: 100-90,100-90DT,115-90,115-90DT,140-90,140-90DT,160-90,180-90,180-90DT,55-90,55-90DT,70-90,80-90,90-90,-90-90DT
ModelsInternational/CaseIH: 4490,4494,4694,4890,4894
ModelsJohn Deere: 1640,2040,2040S,2140,2350,2550,2750,4400,4420,6600,6620,7700,7720,8820
ModelsMassey Ferguson: 1080,1085,1100,1105,1130,1135,1150,1155,1500,1505,1800,1805,2640,2675,2705,2745,2775,2805
ModelsAllis Chalmers: 7000,7010,7020,7045,7060,7080
ModelsHesston: 100-90,100-90DT,115-90,115-90DT,140-90,140-90DT,160-90,180-90,180-90DT,55-90,55-90DT,70-90,80-90,90-90,-90-90DT
ModelsInternational/CaseIH: 4490,4494,4694,4890,4894
ModelsJohn Deere: 1640,2040,2040S,2140,2350,2550,2750,4400,4420,6600,6620,7700,7720,8820
ModelsMassey Ferguson: 1080,1085,1100,1105,1130,1135,1150,1155,1500,1505,1800,1805,2640,2675,2705,2745,2775,2805
ModelsCase: 4490,4494,4694,4890,4894
Cross Reference Numbers220-5000, AR78501, 220-2392, 70262354, 837255M91, 500-6000, 882930010
